Key Features

1. Model: MGO-W10KS
2. Capacity: 10 KVA / 9.0 KW
3. Input Voltage: Single-phase 120 VAC – 288 VAC
4. Output Voltage: 220 VAC ±1%
5. Frequency (Battery Mode): 50/60 Hz ±0.25%
6. Waveform: Pure Sine Wave
7. Transfer Time: 0 ms (zero transfer time)
8. Noise Level: <55 dB
9. Battery Configuration: 16 × 12V/7Ah sealed lead-acid batteries
10. Charging Time: >6 hours for 90% recharging
11. Rectifier Type: IGBT rectifier
12. Power Factor: ≥0.99
13. Warranty: 1 Year

Key Features

1. Model: MGO-W10KS
2. Capacity: 10 KVA / 9.0 KW
3. Input Voltage: Single-phase 120 VAC – 288 VAC
4. Output Voltage: 220 VAC ±1%
5. Frequency (Battery Mode): 50/60 Hz ±0.25%
6. Waveform: Pure Sine Wave
7. Transfer Time: 0 ms (zero transfer time)
8. Noise Level: <55 dB
9. Battery Configuration: 16 × 12V/7Ah sealed lead-acid batteries
10. Charging Time: >6 hours for 90% recharging
11. Rectifier Type: IGBT rectifier
12. Power Factor: ≥0.99
13. Warranty: 1 Year

Description

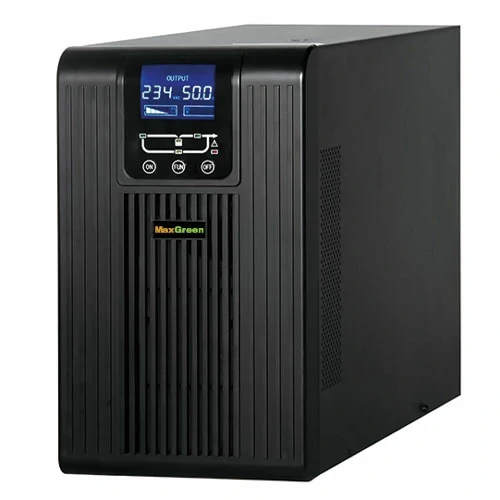

The MaxGreen MGO-W10KS 10 KVA Standard Backup High-Frequency Online UPS is designed to provide reliable and efficient power protection for critical equipment in various applications. With a robust capacity of 10 KVA / 9.0 KW, it ensures continuous power supply during outages, safeguarding sensitive devices from voltage fluctuations and interruptions.

Equipped with 16 × 12V/7Ah sealed lead-acid batteries, the UPS offers a backup time of approximately 15–30 minutes, depending on the connected load. The pure sine wave output ensures compatibility with sensitive electronic equipment, providing clean and stable power.

The UPS features a wide input voltage range of 120 VAC to 288 VAC, making it suitable for areas with unstable power supply. The zero transfer time ensures uninterrupted power to connected devices, while the low noise level of less than 55 dB ensures a quiet operation.

With a 1-year warranty, the MaxGreen MGO-W10KS offers peace of mind and reliable performance.
